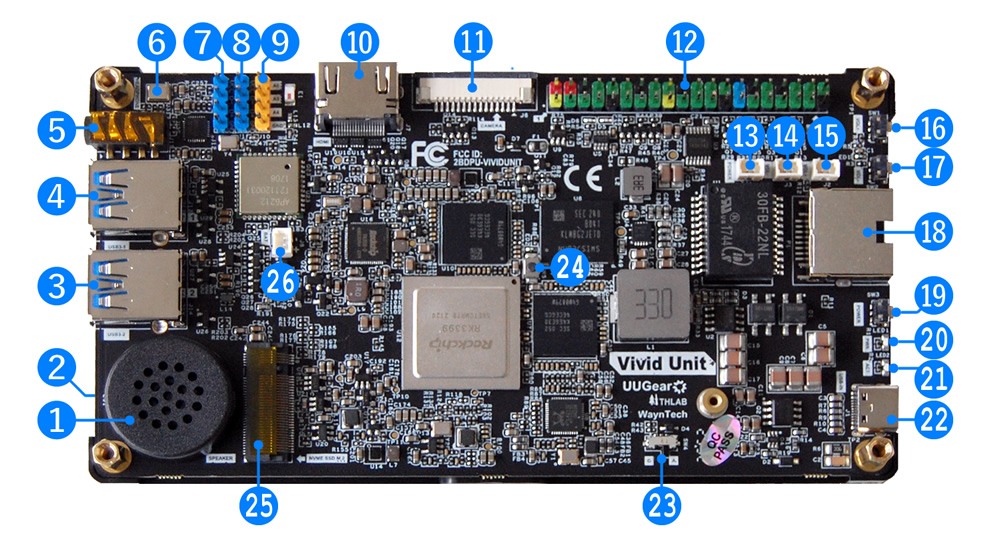

- Speaker
- Microphone (on the back)
- USB 3 Connector 1
- USB 3 Connector 2
- Headphone Jack
- Microphone
- USB 2 Pin Header 1
- USB 2 Pin Header 2
- ADC Pin Header
- HDMI Connector
- MIPI CSI Camera Connector
- 40-Pin GPIO Header
- Power Button Connector (MX 1.25mm)
- Volume- Button Connector (MX 1.25mm)
- Volume+ Button Connector (MX 1.25mm)
- Volume+ Button
- Volume- Button
- RJ45 Ethernet Connector
- Power Button
- Power Indicator (Red LED)
- Activity Indicator (Green LED)
- USB Type C Conncetor
- USB Route Switch (for internal testing only, should put to A)
- MASKROM Button
- M.2 NVME Connector
- RTC 3V Battery Connector (MX 1.25mm)
